Van lifts

Sörensen van lifts with 600kg lifting capacity
Two variants for your needs

Foldable platform double-dwn-arrw Standard platform double-dwn-arrw
X1A 600F

Van lift with 600kg load capacity

Flexibility

Free access to the right rear door

Light van lift with system weight from 195kg with foldable platform for free access to the right rear door.

Functionality

Use trailer hitch

Thanks to a recess in the platform, the use of a trailer is possible at any time. Bolted bracket ball head easily mounted (also retrofittable).

Mounting

Simple and fast assembly

No body work is required to mount the X1A 600F. This makes the van lift particularly easy and quick to mount on the vehicle.

Availability

X1A 600F

  • Mercedes Sprinter
  • VW Crafter
  • Iveco Daily
  • Renault Master
  • Maxus Deliver 9
  • Peugeot Boxer
  • Citroen Jumper
  • Fiat Ducato
  • Opel Movano
  • Nissan Interstar
  • Ford Transit
  • MAN TGE

Technical data

Product name
X1A 600F
Load capacity
in kg
600
Hoist hydraulics
1x lifting cylinder /
1x lock cylinder
Dead weight
from kg
195
Load distance
in mm
600
Mounting
Head coupling
Possible
Permitted
Total weight in t
Transporter /
Box Van

Dimensions

Product name
X1A 600F
Platform height
in mm (special
dimensions possible)
1600 / 1800
Lifting arm
lengths in mm
430/450/515
Maximum loading height
unloaded in mm
Preset by
Vehicle
Minimum loading height
loaded in mm
Preset by
Vehicle
Offset dimension
of the platform in mm
58
Downloads

You can download all information about the tail lift here.

Downloads blck-right-arrw.svg
PDF

Product information X1A 600E / X1A 600F
X1A 600E

Van lift with 600kg load capacity

Payload optimization

Minimum system weight for maximum payload benefits

Particularly low dead weight from 146kg with 600kg load capacity guarantees optimum payload advantages!

Ground clearance

Particularly high ground clearance

Particularly high ground clearance – important when driving over speed bumps or curbs!

Mounting

Simple and fast assembly

No body work is required to mount the X1A 600E. This makes the van lift particularly easy and quick to mount on the vehicle.

Availability

The X1A 600E is available for the following vehicles:

  • Mercedes Sprinter
  • VW Crafter
  • Iveco Daily
  • Renault Master
  • Maxus Deliver 9
  • Peugeot Boxer
  • Citroen Jumper
  • Fiat Ducato
  • Opel Movano
  • Nissan Interstar
  • Ford Transit
  • MAN TGE

Technical data

Product name
X1A 600E
Load capacity
in kg
600
Hoist hydraulics
1x lifting cylinder /
1x lock cylinder
Dead weight
from kg
146
Load distance
in mm
600
Mounting
Head coupling
Possible
Permitted
Total weight in t
Transporter /
Box Van

Dimensions

Product name
X1A 600E
Platform height
in mm (special
dimensions possible)
1600 / 1800
Lifting arm
lengths in mm
375 / 450 / 515

Maximum loading height
unloaded in mm
Predefined
by vehicle
Minimum loading height
loaded in mm
Predefined
by vehicle
Offset dimension
of the platform in mm
58
Visual.svg
Quality

Our quality standards

Sustainability

Maintenance-free bearings for more sustainability and lower life cycle costs.

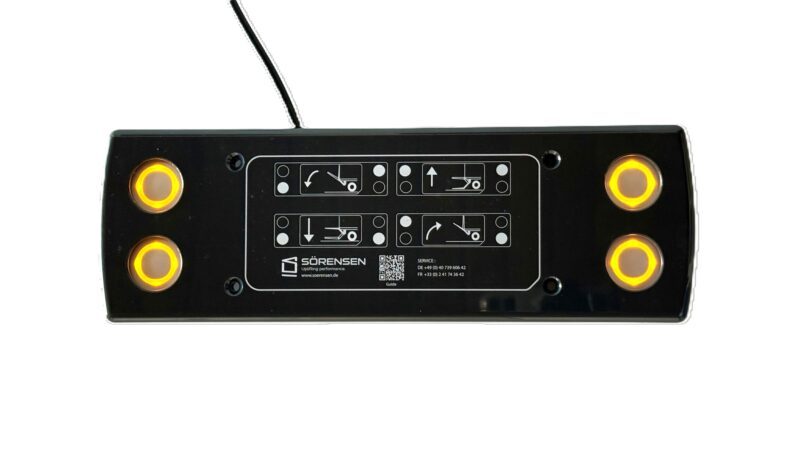

Flat control panel

Optimum protection

Nitrided cylinder piston rods provide optimum protection against rust damage.

Service switch incl. emergency control

X1 Technology

X1 Technology guarantees high power reserves and a level approach to the vehicle floor even with uneven loads.

Cathodic dip and powder coated hoisting gear
